Case 42

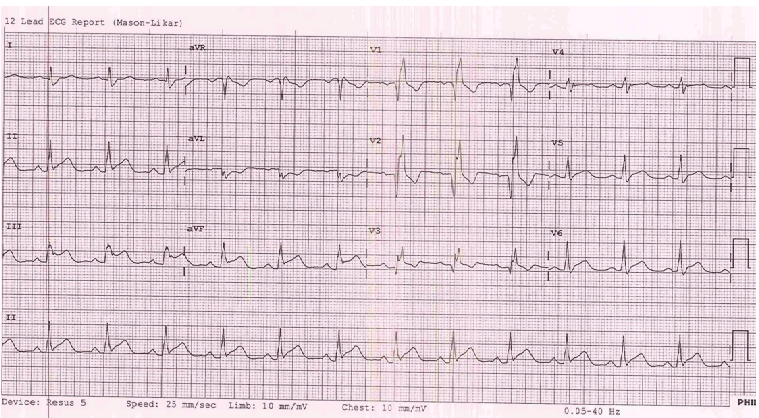

56F, 1 hr central chest pain. List pathologies on ECG with supporting evidence
Expected Response
Infero‐lateral STEMI (1 mark)
ST elevation II, III, aVF also V5,6 (1 mark)
Reciprocal depression aVL, V1 and V2 (1 mark)
STE III > II suggestive of RV MI (1 mark)
RBBB (1 mark) - broad complex QRS with RSR in V1, normal axis (1 mark)
Q waves in anterior leads V1‐3 (1 mark) ‐ suggestive of old anterior MI (1 mark)
